Productos Grating
ATP - GRATING Tráfico pesado
Tabla Productos
| Grating | Pletinas en mm. | Barras transversales | Pletinas y barras @ | Kg/m2 |
|---|---|---|---|---|
| ATP-13 | 50x6 | Ø10 | 34/100 | 81 |
| ATP-14 | 50x8 | Ø12 | 34/100 | 109 |
| ATP-15 | 50x10 | Ø12 | 34/100 | 134 |
| ATP-16 | 50x12 | Ø12 | 34/100 | 159 |
| ATP-17 | 63x6 | Ø10 | 34/100 | 101 |
| ATP-18 | 63x8 | Ø12 | 34/100 | 135 |
| ATP-19 | 63x10 | Ø12 | 34/100 | 167 |
| ATP-20 | 63x12 | Ø12 | 34/100 | 198 |
| ATP-21 | 75x6 | Ø10 | 34/100 | 119 |
| ATP-22 | 75x8 | Ø12 | 34/100 | 159 |
| ATP-23 | 75x10 | Ø12 | 34/100 | 197 |
| ATP-24 | 75x12 | Ø12 | 34/100 | 234 |
| ATP-25 | 100x8 | Ø12 | 34/100 | 209 |
| ATP-26 | 100x10 | Ø16 | 34/100 | 266 |
| ATP-27 | 100x12 | Ø16 | 34/100 | 316 |
Tabla de Cargas
ATSP - GRATING Tráfico Semi-Pesado
Tabla Productos
| Grating | Pletinas en mm. | Barras transversales | Pletinas y barras @ | Kg/m2 |
|---|---|---|---|---|
| ATSP-13 | 50x6 | Ø10 | 50/100 | 57 |
| ATSP-14 | 50x8 | Ø12 | 50/100 | 77 |
| ATSP-15 | 50x10 | Ø12 | 50/100 | 94 |
| ATSP-16 | 50x12 | Ø12 | 50/100 | 111 |
| ATSP-17 | 63x6 | Ø10 | 50/100 | 71 |
| ATSP-18 | 63x8 | Ø12 | 50/100 | 95 |
| ATSP-19 | 63x10 | Ø12 | 50/100 | 116 |
| ATSP-20 | 63x12 | Ø12 | 50/100 | 138 |
| ATSP-21 | 75x6 | Ø10 | 50/100 | 83 |
| ATSP-22 | 75x8 | Ø12 | 50/100 | 111 |
| ATSP-23 | 75x10 | Ø12 | 50/100 | 137 |
| ATSP-24 | 75x12 | Ø12 | 50/100 | 162 |
| ATSP-25 | 100x8 | Ø12 | 50/100 | 145 |
| ATSP-26 | 100x10 | Ø16 | 50/100 | 186 |
| ATSP-27 | 100x12 | Ø16 | 50/100 | 220 |

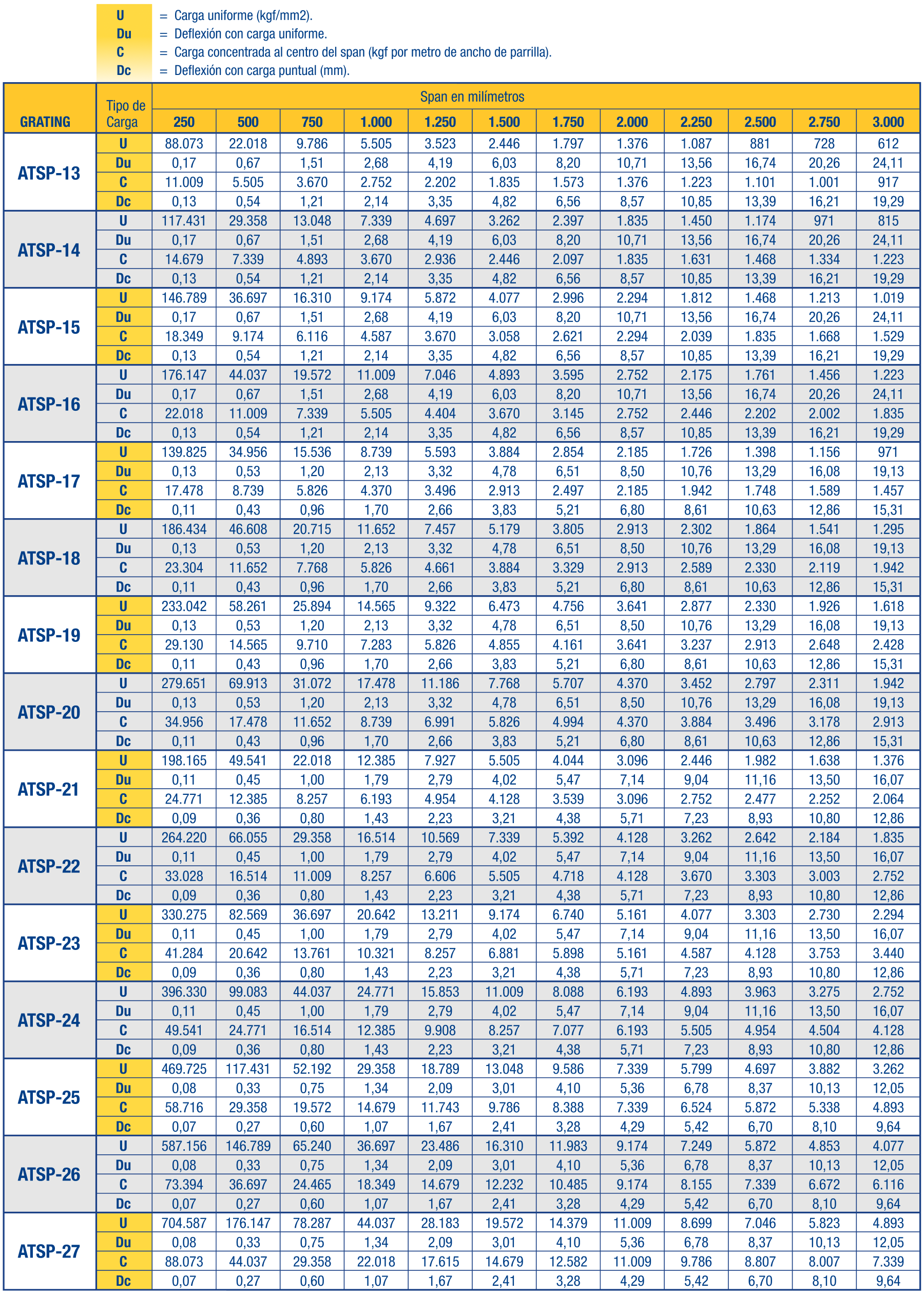

Tabla de Cargas
